Optimization Study For The Cross-Section Of A Concrete Gravity Dam: Genetic Algorithm Model And Application.

Abstract

Concrete gravity dams have trapezoidal shape in their cross section and shall guarantee the global stability against acting loads like hydrostatic and uplift pressures through his gravitational actions (self-weight and others). This study focuses on the shape optimization of concrete gravity dams using genetic algorithms. The cross section of dam is considered as the objective function and design variables are the geometric parameters of the gravity dam. The optimum cross-section design of concrete gravity dams is achieved by the Genetic Algorithm (GA) in Matlab. Sliding, overturning and floating constraints are considered. In order to assess the efficiency of the pro-posed methodology for gravity dam optimization, an example, the Belo Monte gravity dam as a real-world structure has been selected and the optimization of the dam subject to usual load condition has been achieved.

Keywords : optimization, concrete, gravity dams, genetic algorithm, real example, design.

1 Introduction

Concrete gravity dams are hydraulic structures widely used as water reservoir to hydroelectric power plants in general. These structures have trapezoidal shape in their cross section and shall guarantee the global stability against acting loads like hydrostatic and uplift pressures through his gravitational actions (self-weight and others). Hence, finding a proper shape design minimization of the dam's cross-section area can remarkably reduce the construction costs [3].

For stability requirements, the dam must be safe against overturning and sliding. Moreover, the safe stresses in the concrete of the dam or in the foundation material shall not be exceeded. The potential failure plans as concrete-foundation contact, horizontal plans through the dam body or through the foundation, can be considered, according to the rupture mechanisms identified by the geotechnical model [11].

In order to assure the structural global stability and the allowable stress criteria for the concrete gravity dam design, as discussed in Gutstein [19] and [20], a trial and error procedure process is usually carried out from a preliminary cross section defined in the design initial phases, followed by stability and stress analysis studies. Then, if the chosen cross section does not meet the security criteria, it shall be modified and analyzed again; if safety criteria are being met with a little effort, a new study can be conducted with the purpose of optimizing the design.

To achieve this purpose, several alternative schemes with various patterns should be selected and modified to obtain a number of feasible shapes. Therefore, the proper shape of dam considering the economy and safety of design, structural considerations, etc. is selected as the final shape. In order to reliably achieve an optimal shape for dams instead of this trial and error procedure, optimization techniques have been effectively utilized [24], [23] and [34].

Genetic Algorithms (GA) are heuristic search approaches that are applicable to a wide range of optimization problems [4]. This flexibility makes them attractive for many optimization problems in practice. They represent one branch of the field of study called evolutionary computation, in that they imitate the biological processes of reproduction and natural selection to solve for the fittest solutions [7].

GA can solve a broad class of engineering problems encountered in practice, possessing a large number of design parameters (integer, discrete, continuous and integer/discrete-continuous) and a large number of constraints. It has been highly successful as one of evolutionary computation techniques in searching for a broad class of stacking sequence, size, topology optimization problems for composite structures [29], [30], [31] and [18].

Designing and constructing concrete gravity dams must be in a way that not only realize sustained conditions, but also impose the minimum production costs. The major imposed cost in such dams is expenses of excessive use of concrete [35].

Optimizing this cost requires cross-section optimization. The main aim of this paper is to present and discussed an optimization study for concrete gravity dams based on GA’s method and Matlab application. The present work brings a simple implementation using GA in Matlab for usual load condition, contrasting with the complexity presented in [3], [2], [13 [35], [24], [23] and [14] which bring approaches with high complexity computational methods.

The dam's geometry and the load effects over it must be considered in its design analysis procedure. In order to reduce the computational cost of the optimization process, the stopping criteria is limited to satisfactory values. To demonstrate the efficiency of GAs in finding the optimum design of concrete gravity dams, the shape optimization of a real dam from Belo Monte Hydropower is presented as an example for normal conditions.

2 Stability Analysis of Concrete Gravity Dams

In this study is used usual loading combination. Therefore, normal design reservoir elevation, with appropriate loads and uplift. Figure 1 shows the usual loads acting in a dam considering drain. Water pressure is the most major external load acting on such a dam. The horizontal water pressure, exerted by the weight of the water stored on the upstream side on the dam can be estimated from rule of hydrostatic pressure distribution.

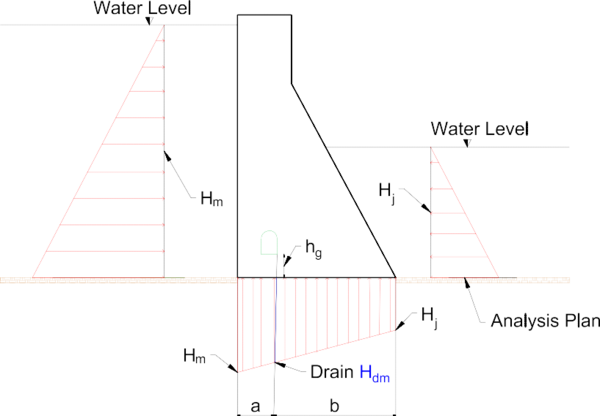

Figure 1. Concrete Gravity Dam Cross-Section and Imposed Forces.

For uplift determination, considering drain reduction, H_dm is adopted as shown in Equation 1.

${H}_{dm}=\left\{{\begin{matrix}\,\,\\{H}_{j}+{\frac {1}{3}}\ast \left({H}_{m}-{H}_{j}\right)\,for\,\,{H}_{j}>\,{h}_{g}\\{h}_{g}+{\frac {1}{3}}\ast \left({H}_{m}-{h}_{g}\right)\,for\,\,{H}_{j}<\,{h}_{g}\end{matrix}}\,(1)\right.$

h_g is the height, H_m upstream water, H_j downstream water and H_dm is uplift height with drain reduction. To guarantee security for a dam, the dam cross section is verified against floating, overturning and sliding.

Floating safety factor has the function to guarantee the stability of structure against the forces that tend to make the body float. It is calculated by Equation 2 [12].

$FSF=\,{\frac {\sum _{}^{}V}{\sum _{}^{}U\,}}\,(2)$

Where FSF is safety factor against floating, should be greater than 1.3. ΣV is resultant vertical force and ΣU is total uplift force.

The overturning of a gravity dam may be calculated by dividing the total resisting moments by the total moments tending to cause overturning about the downstream toe, it is defined as the ratio between the resisting moments and overturning moments [33].

$FSO=\,{\frac {\sum _{}^{}{M}_{r}}{\sum _{}^{}{M}_{o}}}\,\left(3\right)$

FSO is the safety factor against overturning, should be greater than 1.5. Mr are moments resisting and Mo moments overturning.

A dam will fail in sliding at its base, or at any other level, if the horizontal forces causing sliding are greater than the resistance available to it at that level. The resistance against sliding may be due to friction alone, or due to friction and shear strength of the joint. The sliding stability is based on a safety factor as a measure of determining the resistance of the structure against sliding [32].

$FSS=\,{\frac {\mathrm {\mu } \sum _{}^{}V}{\sum _{}^{}H}}\,(4)$

FSS is the safety factor against sliding which should also be greater than 1.0. µ is coefficient of friction, ΣV is total vertical force acting on dam and ΣH is total horizontal force acting on dam.

3 Geometrical Model of Concrete Gravity Dams and Problem Formulation

In order to assign the geometrical model of concrete gravity dams, the shape can be defined using four parameters. Based on the model of concrete gravity dam depicted in Figure 2, the cross-section of concrete gravity dam studied is defined by the four parameters given by Equation 5.

${\overset {\rightarrow }{X}}=\lbrace {h}_{b},{b}_{c\,},\,{b}_{x},\,{h}_{t}\rbrace \,(5)$

Figure 2. Geometrical model of concrete gravity dam

Where b_c is a parameter required to defined crest of gravity dam. Also, the downstream slope is specified by the bx and h_t design variables and h_b is the dam’s height.

The process of evaluating the overall stability of a concrete dam, makes use of the static equations to evaluate the equilibrium of rigid body of the part. In order to automate the calculation of the global stability of a concrete gravity dam, an evaluation program was developed in the Matlab language. This program will be used as a starting point of the research.

The evaluation program has the ability to calculate overall stability and dam stress from the dimensions and conditions provided by the designer. This algorithm returns the values of the safety factors, calculated by equations 2,3 and 4.

After completing the calculations, the program displays the values obtained for FSF, FSO and FSS with a message indicating whether these values meet the design criteria, or whether the study section should be resized.

Gravity dam optimization problem is explained in this section. The cross-sectional area of the dam is considered as an objective function to be minimized. An optimization problem subjected to design constraints can be expressed as follows:

Find ${\textstyle {\overset {\rightarrow }{X}}^{L}\leq {\overset {\rightarrow }{X}}\leq {\overset {\rightarrow }{X}}^{U}}$

Minimize ${\textstyle f\left({\overset {\rightarrow }{X}}\right)}$

Subject to ${\textstyle g\left({\overset {\rightarrow }{X}}\right)\leq 0\,}$

Where ${\textstyle f\left({\overset {\rightarrow }{X}}\right)}$ and ${\textstyle g\left({\overset {\rightarrow }{X}}\right)}$ are the objective function and the constraints, respectively. ${\textstyle {\overset {\rightarrow }{X}}^{L}}$ and ${\textstyle {\overset {\rightarrow }{X}}^{U}}$ are the lower bound and the upper bound of the design variables, ${\textstyle {\overset {\rightarrow }{X}}}$, respectively [23].

The objective function is the function you want to optimize. For standard optimization algorithms, this is known as the objective function. In this optimization problem of concrete gravity dams, the cross-section area of gravity dam body is considered as objective function, ${\textstyle f\left({\overset {\rightarrow }{X}}\right)}$ , that should be minimized. The cross-section area of concrete gravity dam can be determined as follows:

$f\left({\overset {\rightarrow }{X}}\right)=f\left(A\right)=\left({h}_{b}\ast {b}_{c\,}\right)+$${\frac {\left({b}_{x}-bc\right)\ast \left({h}_{b}-\,{h}_{t}\right)}{2}}\,(6)$

Where ${\textstyle f\left(A\right)}$ is cross-section area, and h_b, b_c, b_x and h_t are design variables showed in figure 2.

In the present study, the behavior and stability constraints are considered as the problem constraints, ${\textstyle g\left({\overset {\rightarrow }{X}}\right)}$ . The behavior constraints consist on the safety factor against floating, overturning and sliding, calculated by equations 2, 3 and 4.

$1.3-FSF\leq 0$

$1.5-FSO\leq 0\,$

$1.0-FSS\leq 0$

${\textstyle \,}$ ${\textstyle \,}$

4 The Optimization Algorithm (Optdam)

4.1 Genetic Algorithm (GA)

Genetic algorithm (GA) is a method for solving both constrained and unconstrained optimization problems that is based on natural selection, the process that drives biological evolution. It is an optimization and search technique based on the principles of genetics and natural selection [21]. An individual is any point to which you can apply the fitness function [1].

The value of the fitness function for an individual is its score. A population is an array of individuals. At each iteration, the genetic algorithm performs a series of computations on the current population to produce a new population. Each successive population is called a new generation. The best fitness value for a population is the smallest fitness value for any individual in the population [15].

To create the next generation, the genetic algorithm selects certain individuals in the current population, called parents, and uses them to create individuals in the next generation, called children. Typically, the algorithm is more likely to select parents that have better fitness values [28].

A GA allows a population composed of many individuals to evolve under specified selection rules to a state that maximizes the fitness (minimizes the cost function). The genetic algorithm repeatedly modifies a population of individual solutions [27].

Evolution is the basis of Genetic Algorithms. The current variety and success of species is a good reason for believing in the power of evolution. Species are able to adapt to their environment. They have developed to complex structures that allow the survival in different kinds of environments. Mating and getting offspring to evolve belong to the main principles of the success of evolution. These are good reasons for adapting evolutionary principles to solving optimization problems [25].

It presumes that the potential solution of a problem is an individual and can be represented by a set of parameters. These parameters are regarded as the genes of a chromosome and can be structured by a string of values in binary form. A positive value, generally known as fitness value, is used to reflect the degree of “good-ness” of the chromosome for solving the problem, and this value is closely related to its objective value [26].

At each step, the genetic algorithm selects individuals at random from the current population to be parents and uses them to produce the children for the next generation. They combine survival of the fittest among string structures with a structured yet randomized information exchange search algorithm with some of innovative flair of human search [16]. Over successive generations, the population evolves toward an optimal solution.

It can be applied to solve a variety of optimization problems that are not well suited for standard optimization algorithms, including problems in which the objective function is discontinuous, nondifferentiable, stochastic, or highly nonlinear. The genetic algorithm can address problems of mixed integer programming, where some components are restricted to be integer-valued [10].

The genetic algorithm differs from a classical, derivative-based, optimization algorithm in two main ways. First, classical algorithms generate a single point at each iteration. The sequence of points approaches an optimal solution, GA generates a population of points at each iteration and the best point in the population approaches an optimal solution. The second difference is that classical algorithms selects the next point in the sequence by a deterministic computation, instead, GA selects the next population by computation which uses random number generators.

4.2 Penalty Function

In generic search methods, most applications of GAs to constraint optimization problems have used the penalty function approach of handling constraints. The penalty function approach involves a number of penal-ty parameters which must be set right in any problem to obtain feasible solutions [22].

It's applied constraint handling method for genetic algorithms. It uses the penalty function in Equation 7, where infeasible solutions are compared based only on their constraint violation [8].

${F\left({\overset {\rightarrow }{X}}\right)=\left\{{\begin{matrix}f\left({\overset {\rightarrow }{X}}\right),\,\,\&if\,{g}_{j}\left({\overset {\rightarrow }{X}}\right)\geq 0\quad {\forall }_{j}=1,2,\ldots m,\,\\{f}_{max}+\sum _{j=1}^{m}{R}_{j}\left\langle {g}_{j}\left({\overset {\rightarrow }{X}}\right)\right\rangle \,Otherwise\end{matrix}}\right.}(7)$

Where ${\textstyle F\left({\overset {\rightarrow }{X}}\right)}$ is the penalty function, ${\textstyle f\left({\overset {\rightarrow }{X}}\right)}$ and ${\textstyle g\left({\overset {\rightarrow }{X}}\right)}$ , as shown in section 3, are the objective function and the constraints, respectively. Hence, ${\textstyle \left\langle {g}_{j}\left({\overset {\rightarrow }{X}}\right)\right\rangle }$ denotes the absolute value of the operand, if the operand is negative and returns a value zero, otherwise. The parameter ${\textstyle {R}_{j}}$is the penalty parameter of the j_h inequality constraint. The purpose of a penalty parameter ${\textstyle {R}_{j}}$ is to make the constraint violation ${\textstyle {g}_{j}\left({\overset {\rightarrow }{X}}\right)}$ of the same order of magnitude as the objective function value ${\textstyle f\left({\overset {\rightarrow }{X}}\right)}$ [9].

The parameter ${\textstyle {f}_{max}}$ is the objective function value of the worst feasible solution in the population. Thus, the fitness of an infeasible solution not only depends on the amount of constraint violation, but also on the population of solutions at hand. However, the fitness of a feasible solution is always fixed and is equal to its objective function value.

4.3 Optdam

Bearing in mind the importance of studying dams and application for evolutionary computing methods of optimization, the aim now is to comment on the Optdam program developed in Matlab. This program allows finding an optical dam’s cross section. The program was developed to cover general cross sections of dams in terms of geometry as showed in figure 2.

At the beginning, a set of solutions, which is denoted as initial population, is initialized. This initialization is recommended to randomly cover the whole solution space or to model and incorporate expert knowledge. The representation determines the initialization process. Initial population is shown in figure 3 [16].

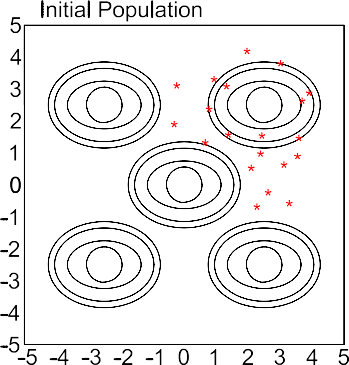

Figure 3. Initial Population

After initial population, GA scores each member of the current population by computing its fitness value, scales the raw fitness scores to convert them into a more usable range of values, then selects members, called parents, based on their fitness.

Some of the individuals in the current population that have lower fitness are chosen as elite [17]. These elite individuals are passed to the next population. Produces children from the parents. Hence, children are produced either by making random changes to a single parent, mutation, or by combining the vector entries of a pair of parents, crossover. Therefore, GA replaces the current population with the children to form the next generation [5] and [6]. The conception of the new generations is presented in figure 4.

Figure 4. Creating the next generation

Resuming, the GA in Matlab uses three main types of rules at each step to create the next generation from the current population.

• Selection rules select the individuals, called parents, that contribute to the population at the next generation.

• Crossover rules combine two parents to form children for the next generation.

• Mutation rules apply random changes to individual parents to form children.

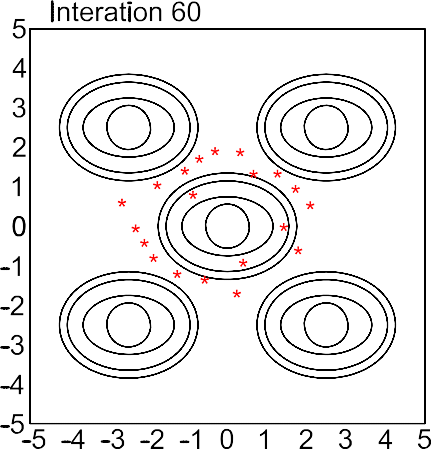

The algorithm stops when one of the stopping criteria is met. Figure 5 shown the convergence process. The GA parameters of Optdam program are shown in table 1. In Figure 6 are shown a flowchart illustrating the GA in program.

Figure 5. Convergence Process

Table 1 GA Information

GA Parameters
Parameters	Adopted
Population type	Double vector
Population size	100
Fitness scaling	Rank
Elite count	40
Cross-over fraction	0.8
Mutation function	Constraint dependent
Cross-over function	Constraint dependent
Migration direction	forward
Migration fraction	0.2
Migration interval	20
Initial penalty	10
Penalty factor	100
Maximum number of generations	100
Stall generations	50
Function tolerance	10-6
Constraint tolerance	10-3
Stall time	60 (s)
Compile timeout	180 (s)

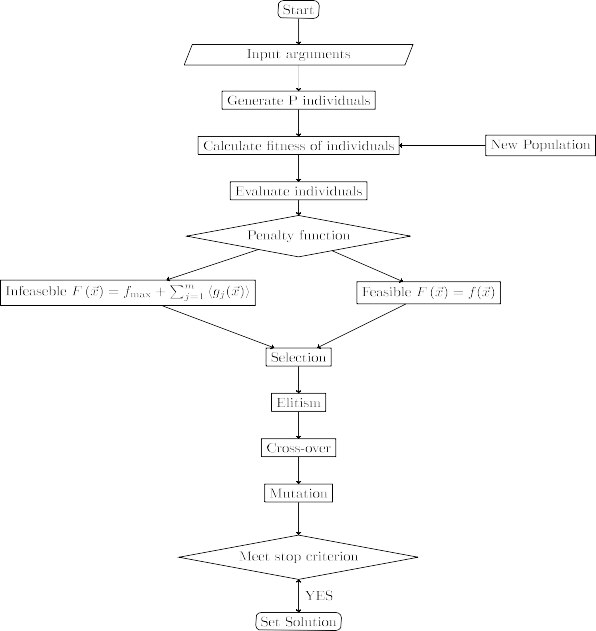

Figure 6. Optimization Algorithm

5 Example: Idealized Cross-Section of the Belo Monte HPP Dam

In order to show the applicability of the Optdam program in cases referring to reality faced by the designers, an optimization study is made for a concrete gravity dam adapted from one of the dams at the site of the hydroelectric Belo Monte. This dam is a lateral retaining wall. The initial design of Belo Monte dam is shown in Figure 7.

Figure 7. Belo Monte’s Cross-Section

In order to evaluate cross-section’s dam stability, it is necessary to define the properties of the materials used in the calculation. For this case the materials used in the calculation were obtained from values commonly used for dams executed in the Belo Monte HPP region. The properties of such materials employed in this example are shown in table 2.

Table 2 Materials Properties

The properties of materials
Material	Value	Unit
Concrete’s Young Modulus	240.00	MPa
Concrete resistance	25.00	MPa
Poison’s ratio of concrete	0.2	-
Mass density of concrete	2500	Kg/m³
Speed of pressure wave	1440	m/s
Wave reflection coefficient	0.9	-
Rock friction angle	π/5	rad
Partial friction safety factor	1	-
Internal friction coefficient	0.7	-
Elasticity modulus of rock	27.580	MPa
Poison’s ratio of foundation	0.2	-

The analyzed section presents the geometric parameters shown in table 3. Table 3 also shows other important parameters for optimizing the section, being the water columns to which the dam is submitted, the search space defined from the minimum dimensions defined by the project specifications (such as free-board). This table also shows the safety factors obtained for such a section, from which we can see that the study section has room for improvement, how much it can be improved is what Opdam shows.

Table 3 Dam Information

Geometry parameters
Parameter	Value	Unit
Cross section area	2410	m²
Concrete volume	2410000	m³
Water columns
Parameter	Value	Unit
Upstream water	70	m
Downstream water	5	m
Search Space
Design variable	Lower bound (m)	Upper bound (m)
h	75	80
bc	2	10
bx	16	56
ht	2	10
Safety factors
Factor	Design criteria request	Achieved values
FSF	3.00	4.52
FSO	1.50	2.08
FSS	1.00	1.32

It is worth noting that this is an example that refers to a dam designed and executed, not being configured as a case study, since the values of the constants (cohesion, angle of friction, specific gravity of concrete, etc.) among other specificities of the project are not known with exactness.

6 Results

The optimum design of the gravity dam for Belo Monte’s dam using GA is given in Table 5. By comparing the solution obtained for the dam with the GA can significantly reduce the concrete volume of dam.

Table 5 Optimization Results

Optimum designs of the dam obtained by Optdam (GA)
Design variable	Value	Unit
h	78	m
bc	7	m
bx	43	m
ht	7	m
FSF	4.5062	-
FSO	1.5001	-
FSS	1.0030	-
Cross section area	1824	m²
Concrete savings	586000	m³
savings percentage	24.31	%

In order to limit the computational cost and to streamline the section optimization process, four stop criteria were defined for Optdam, these criteria were presented in table 1 along with the other program information. In order to make the program's functionality clearer, the stopping criteria are further analyzed here. The Optdam’s stopping criteria are stall generations, stall time, maximum number of generations and compile timeout.

Stall generations defines the number of generations in which there is no significant gain in the optimization of the objective function. Stall time defines the timeout in which there are generations without significant gain in optimization. Maximum number of generations specifies the maximum number of iterations the genetic algorithm performs and compile timeout defines the maximum time the program can take to find the optimal solution. Figure 8 shows the operation of the stop criteria in the example.

Figure 8. Stopping Criteria

Due to the rapid convergence of GA, already in the first generations tends to obtain satisfactory results. This makes the number of fifty stall generations a high measure of reliability that global minimum has been achieved. Since stall generations is the decisive stopping criterion, it is noted that the stopping criteria validate each other. The graph in Figure 9 presents the best cross section area value of the objective function in each generation versus the generation number. The best values and mean values are highlighted for each iteration.

Figure 9. GA Operation

It can be concluded that the methodology presents too much robustness in the resolution of the problem (reduction of area), as discussed in the stopping criteria, already in the first generations, in its best solution, have acceptable results. It is noted that as the iterations progress, the mean values obtained are approaching the best values, this is due to the GA’s natural selection excludes the values of lesser fitness and starts to work only with the values that best fit adapt to the solution of the problem.

Figure 10 shows the optimized cross section within the actual section. The red strip showing the area economy obtained in the example (assuming the same resistance parameters adopted here, cohesion, friction and concrete specific gravity), section optimization reduces an area strip to the right of the section, taking a notable reduction in the dam base.

Figure 10. Optimized Section

7 Conclusions

An efficient optimization procedure is introduced to find the optimal shapes of concrete gravity using genetic algorithm in Matlab software. The concrete gravity dam body is treated as a two-dimensional structure involving the geometry.

An example based on a real dam has been presented. The GA optimum solution obtained for such dam reveals how already executed dams could have more slender sections and how bends to be projected can avail of optimization mechanisms for the choice of concrete gravity dam sections, producing more economical dams.

Results demonstrated the ability of these algorithms for this type of continuous optimization problem. Status of optimally designed dam for the algorithm is also provided for better assessment of safety factors. It is shown that all the constraints are completely satisfied.

This research provides useful optimization formulations for trapezoidal concrete gravity dams and can be extended to other dams. The final result is a robust genetic algorithm program for shape optimization of concrete gravity dams, that is simple from a mathematical point of view and is able to work with trapezoidal dams under different load and bounder conditions. The proposed method reduces the cross-section area and consequently the volume of dam up to 20% with very low computational effort.

However, it is worth mentioning that the program developed here makes use of the global stability conditions as limiting for the evaluation and selection of the cross sections, being this necessary but not sufficient condition in a concrete dam design by gravity.

In real design situations, (even though project practices indicate that once the overall stability criteria are met, the section will meet the stress criterion and other possible criteria [19]) the Optdam must be used to select the cross section that must then be evaluated for stress criteria (usually using finite elements) and specific conditions that vary with each project (earthquakes, silting, etc.).
