Abstract

The seismic response of tensile membrane structures (TMS) is investigated. To the authors knowledge, this is the first study on TMSs subjected to a seismic record reported in the literature. A type of membrane structures usually considered as a reference in other works are employed in the present study. The selected hyperbolic-paraboloid fabric structures, also referred as hypar TMSs, are subjected to an earthquake accelerogram from a relatively large earthquake recorded at Norcia, Italy. To obtain the TMSs seismic response, a finite element formulation reported in a previous study, and which accounts for wrinkling phenomena, orthotropic material modeling, and geometrical nonlinearity, is employed. The analyses are performed in two stages; first for the prestressed case and then the seismic loading is added. It is found that the seismic response of TMSs should not be disregarded by designers beforehand, since important increments in the dynamic response of the displacements produce an incremet of around 9% for stresses. However, a very important increment of around 80% for support reaction forces is computed, when compared with the static case. It is also found that the orientation of the frame-supporting structure has a significant impact on the computed seismic reactions.

Keywords: tensile membrane structures, seismic excitations, dynamic analysis, finite element method

1 Introduction

The structural analysis and design of tensile membrane structures (TMS) is a subject that has become important in recent years and some methodologies and recommendations have arisen to cope with the complex behavior of these light weight structures with impressive designs. Noticeably, the TMS analysis and design concerns are focused on certain types of loads which are considered critical for fabric structures. Recent studies focus primarily in demands on TMS due to wind and snow loads to analyze the structures, to compute their reliability and to review other aspects (e.g., [1], [2], [3], [4], [5], [6], [7] and [8]).

The seismic response of TMSs is virtually absent in the literature, and recommended guidelines (e.g., [9]) and formal code regulations are still under development in many countries (e.g., [10]). Even though the wind and snow loads seem to capture the attention of more designers and studies on TMSs, it will be seen in the present work that consideration of the earthquake forces may be relevant for some specific issues regarding the seismic response of TMSs and their supporting structures.

Recent literature dealing with the analysis of TMSs is based on the finite element method (FEM), however detailed information on the employed programs is not always reported or commercial software is used ([1], [11], [5]); this is important, since there is a wide variability of results when using FEM to analyze TMSs ([5]). In the present study an on-purpose own developed code which accounts for wrinkling phenomena, orthotropic material modeling, and geometrical non-linearity is used, which formulation and discretization is established in detail in ([12]) and references within. [13] and [14] used a similar formulation.

Although there are TMSs with different shapes reported in the literature, the hyperbolic paraboloid, nicknamed as hypar, has become some sort of benchmark for TMS studies and is used by several authors in recent works (e.g., [1], [4], [6], [7], [8]). Hypar TMSs with different supporting sub structures are considered in the present study. Considering the preceding paragraphs, the main objective of this study is to assess the seismic response of hypar TMSs and their frame-supporting structure subjected to earthquake loads using our referred FEM code.

2 Finite Element Formulation

The finite element analysis formulation to be used for the dynamic analyses of membrane structures is based on a previous study [12], which is used for the structures under analysis in this study. The curvilinear coordinate system used to formulate the membrane finite element is shown in Fig. 1.

Figure 1: Membrane coordinate system

From [12], the internal forces given in curvilinear coordinates for membrane structures are

where: ${\textstyle i}$ is the global degree of freedom (dof), ${\textstyle I}$ is the local element node, ${\textstyle \Omega _{0}}$ is the reference configuration domain, and the Greek indices ${\textstyle \alpha }$, ${\textstyle \beta }$ on the membrane mid-surface take on values of 1 and 2 in a plane stress state in the Euclidean space. Besides, ${\textstyle {\textrm {S}}}$ is the ${\textstyle 2^{nd}}$ Piola-Kirchhoff stress tensor, and the fourth-order strain-displacement tensor in curvilinear coordinates is given by

with

where ${\textstyle N_{I}}$ denotes the shape function of node ${\textstyle I}$ of the finite element. Using voigt notation to transform internal forces from tensorial to matrix notation, equation (1) yields,

where the strain matrix ${\textstyle \mathbf {B} _{I}^{cur}}$ is given by

Following the details given in [12], the internal forces can be computed as indicated ahead to take into account the orthotropic material behavior.

It is important to mention that fabric manufacturers usually do not provide in their catalogs the thickness of their membrane products, and they report only the tensile stiffness. This last parameter is enough to perform a static or quasi-static analysis. If the tensile stiffness is given and the formulation given in [12] is going to be used, some changes must be carried out. Because both alternatives could be of interest for researchers, and because the formulation given by [12] is versatile enough to implement any of the alternatives, a brief description is given in the following when no thickness is directly available.

First, it is noted that in [12] the internal forces are obtained by means of

where: ${\textstyle A_{0}}$ is the element surface in reference configuration, ${\textstyle t}$ is the membrane thickness, ${\textstyle \mathbf {B} }$ is the nonlinear strain-displacement matrix, ${\textstyle \mathbf {Q} }$ is the transformation matrix from a curvilinear system to a rectangular one, ${\textstyle \mathbf {T} _{\sigma }}$ is the rotation matrix from fiber axes to local axes, and S is the ${\textstyle 2^{nd}}$ Piola-Kirchhoff stress vector (force per unit area). In equation (6), the stresses are computed as

where: ${\textstyle \mathbf {E} }$ is the Green-Lagrange strain vector, and the constitutive equation ${\textstyle \mathbf {C} }$ is expressed as

In equation (8), ${\textstyle E}$ is the Young modulus and ${\textstyle \nu }$ is the Poisson coefficient. Since material properties given in most manufacturers' catalogs neither give a value for the thickness ${\textstyle t}$ nor for the Young modulus ${\textstyle E}$, then the internal forces for membrane analysis must be evaluated using

where: ${\textstyle \mathbf {S} ^{l}}$ is the ${\textstyle 2^{nd}}$ Piola-Kirchhoff stress vector (force per unit length), and

with

where: ${\textstyle E_{ts}}$ is the tensile stiffness of the material, given in units of force per unit length (as usual in manufacturers of membrane materials). It is remarked that the tensile stiffness of the material is numerically equivalent to the Young modulus times the thickness, ${\textstyle E_{ts}=E\,t}$, therefore the thickness is no longer required as stated in the original formulation as given in [12].

For the case when an orthotropic material is modelled, two directions of the tensile stiffness must be given, which are ${\textstyle E_{w}}$ for the warp direction and ${\textstyle E_{f}}$ for the fill direction. Consequently, in the orthotropic plane stress constitutive equation, ${\textstyle E_{x}}$ must be replaced by ${\textstyle E_{w}}$, and ${\textstyle E_{y}}$ must be replaced by ${\textstyle E_{f}}$. If desired, these changes would allow us to solve other problems, for instance the numeric examples given in [5].

Unfortunately, the previous simplification is only valid for static or quasi-static analyses. For a dynamic seismic analysis to explicitly determine the thickness, ${\textstyle t}$, is necessary. Consequently, the original formulation in [12] is used, so that the right structure mass is accounted for and a consistent analysis assessing the internal forces given by equation (6) can be performed, which allows to complete the formulation with

here, the external forces ${\textstyle \mathbf {f} ^{\,ext}}$ are given by the ${\textstyle 2^{nd}}$ Newton's law, by considering the seismic record as the acceleration for the studied site which is defined later. It is noteworthy that the formulation in [12] is of a wide applicability, and since it was originally developed to cope with dynamic analyses, it can be used to analyze the TMS under seismic excitations given below.

The algorithm used to solve equation (12) from a known solution time at step ${\textstyle n}$ (e.g., displacement ${\textstyle \mathbf {u} _{n}}$, velocity ${\textstyle {\dot {\mathbf {u} }}_{n}}$ and acceleration ${\textstyle {\ddot {\mathbf {u} }}_{n}}$), take into account the generalised${\textstyle -\alpha }$ time integration scheme leading to

where

Low-frequency dissipation is optimal with

and when

the method is second-order accurate and posses high frequency dissipation.

3 Examples

3.1 Structure 1

In this study a tensile-structure supported on a sub-structure is investigated. The geometry of the tensile-structure, as well as the surrounding cable along the perimeter, are shown in figure 2.

Figure 2: Membrane geometry and surrounding cable

In table 1 the values of the geometry of the tensile-structure and the surrounding cable are listed.

From the coordinates listed in table 1, it can be observed that the highest points for the membrane correspond to nodes 3 and 7, while the highest points for the cables correspond to nodes 10 and 12. The direction along the highest points is coincident with the principal direction of the fiber reinforcement of the membrane, i.e. the warp direction, also indicated in figure 2.

In figure 3 the nodes of the supporting sub-structure are shown.

Figure 3: Nodes and plan view of the supporting sub-structure

Coordinates for the geometry of the supporting sub-structure shown in figure 3 are listed in table 2.

The resulting mesh by using the previous listed membrane and support coordinates are depicted in figure 4 and, as it can be observed in the figure, consists of linear triangles with a ${\textstyle 20\times 20}$ mesh for the membrane. The cables and posts are defined by a two-noded unidimensional element. Both mentioned types of elements are Total Lagrangian non-linear geometric elements. Also, in figure 4 the control points A, B and C used for obtaining the displacements and stresses to be discussed later are shown.

The material properties of the membrane, after [5], are listed in table 3, where a thickness for the membrane has been added.

The cable, tensors and posts material properties can be found in table 4. Note that we denote post as a compression member in the supporting sub-structure (purple elements in figure 4), and tensor as a tension member of the supporting sub-structure (cyan elements in figure 4).

The structure is subjected to two load stages, and the wrinkling model described in [12] is used in both phases. The first stage corresponds to prestress, which is applied as per the values indicated in table 5.

The prestress stage is explained in what follows:

• Prestress.- A quasi-static analysis is carried out by applying the prestress linearly with a step time increment ${\textstyle \Delta t=0.01}$.

The second load stage corresponds to the seismic loads, which are applied by using as input the accelerations of the 6.6 magnitude (Richter scale) earthquake recorded at Northern Norcia, Italy, on October 30, 2016 and shown in figure 5,[15].

Figure 5: Accelerogram form the Norcia, Italy earthquake

The seismic loading is added to the resulting prestressing state in the second stage as follows:

• Seismic load.- A seismic undamped dynamic analysis with a time step increment ${\textstyle \Delta t=0.005}$ ${\textstyle s}$ is performed up to a total of 8000 time steps equivalent to a duration of ${\textstyle 40}$ ${\textstyle s}$ of the earthquake record. In particular, the global X direction was analyzed by considering that the 100% of the earthquake acted along this direction

It is pointed out that for the case of a geometric non-linear dynamic analysis, Newmark's dynamic method does not provide a right solution; therefore, ${\textstyle \alpha {-}}$methods like the HHT [16], WBZ [17] or Generalized-${\textstyle \alpha }$ [18] are required.

The results from the dynamic analysis highlight important issues to be considered for these kinds of structures. To elaborate on this, first consider the largest displacement component at control point A depicted in figure 6. At this point the displacement due to prestress leads to a descend of the structure to a maximum of 2.9 mm, and from there the maximum absolute displacement during the earthquake further increases to a maximum of 10.9 mm. This is equivalent to a 375% increase, if the prestress displacement is used as reference. Even though such increase is significant in percentage, is not critical from a serviceability point of view for the structure, since the lowest point in the membrane is located at a 4 m height.

Figure 6: Displacement in the Z direction for control point A

To further elaborate on the discussion, the largest displacement component for control point B is shown in figure 7, where it can be observed that the structure raises to a maximum of 1.4 mm due to the prestress, and from there it further reaches a maximum absolute displacement of 5.9 mm during the earthquake. This is equivalent to a 421% increase, is the prestress displacement is used as reference.

Figure 7: Displacement in the Z direction for control point B

It is noted that by employing the same scale as in the previous two figures, the largest displacement component for control point C is in the X direction; however, for a consistent comparison (i.e. in the same direction as in the previous two figures) the displacement in the Z direction for control point C is shown in figure 8. At this point the displacement due to prestress leads to a descend of the structure to a maximum of 5.3 mm; during the earthquake the absolute maximum displacement is 4.5 mm.

Figure 8: Displacement in the Z direction for control point C

The displacement in the X direction for control point C is observed in figure 9; it is shown that the displacement due to prestress is practically zero (exactly 7.3x10-5 mm), and it reaches an absolute maximum of 5.5 mm during the earthquake.

Figure 9: Displacement in the X direction for control point C

From the previously described results it could be natural to expect similar increments in the membrane stresses. However, the stress increments in the membrane are not as significant; this is evidenced in figures 10 and 11. For the warp stress, the maximum increment due to the dynamic loads is located at point C and is equal to a static value of 1.76 kN/m, while the maximum dynamic value is equal to 1.92 kN/m. This means that the stress increase is in the order of 9.0%, considering the static value as reference. For the fill stress similar trends are found, being the maximum increase of the order of 8.5% located at point C (with static and dynamic values of 1.64 kN/m and 1.78 kN/m, respectively). In figures 10 and 11 the stresses at the other control points (A and B) are also indicated; similar trends can be observed but they are not included since their increments are lower than those of point C.

Figure 10: Stresses in the warp direction

Figure 11: Stresses in the fill direction

With the results discussed so far, one may think that the quantitative values of stresses and displacements due to earthquake loads are not that relevant for design purposes when membrane structures are considered (as opposed to the usually more critical values resulting from wind loading). However, a different story could be found if the design is focused on the foundation supports (anchorage) as will be discussed shortly after, and consequently care should be exercised by the designer in such a case.

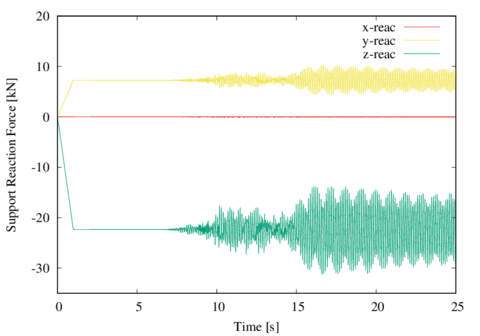

In figures 12, 13 and 14 the most critical behavior at the structure foundation supports, corresponding respectively to nodes 16, 23 and 24 in figure 3, is shown. In figure 12, the static reaction in the Z direction is 57.8 kN, and the corresponding dynamic value is 63.1 kN; it means an increment of 9.1% in the compression force on the support.

Figure 12: Reactions at major post

Figure 13: Reactions at major tensor 1

Figure 14: Reactions at major tensor 2

In figure 13 the maximum response in the Z direction is exhibit, which is a tension force and is given by a negative value in the reaction; the static value of such response is -22.3 kN, while maximum absolute dynamic response is -31.5 kN, meaning that an increase of tension of 41% is found. Likewise, figure 14 shows that the maximum response is, one more time, a tensile force in the Z direction; this time the static value of such response is -22.3 kN, while maximum absolute dynamic response is -31.2 kN (i.e., a 40% increment).

Figure 15 shows the norm of the major reactions on the structure, which corresponds to node 23 in figure 3. It can be observed that the static response value is 23.5 kN, while the maximum dynamic response is 33.1 kN; a 40.9% increment. This increase is significant, since the usual design load factors do not cover such a large increment in terms of force.

Figure 15: Norm of reactions at major tensor 1

3.2 Structure 2

The increment in the reaction at the foundation supports during an earthquake may be generated by the horizontal component of the compression post due to the transmission of seismic horizontal forces to the structure. To investigate further this issue, the structure response is obtained by considering that the posts are not inclined, but oriented in the vertical direction. The new geometry with the changed nodes is shown in figure 16, and they are the nodes 13, 14, 15 and 16.
